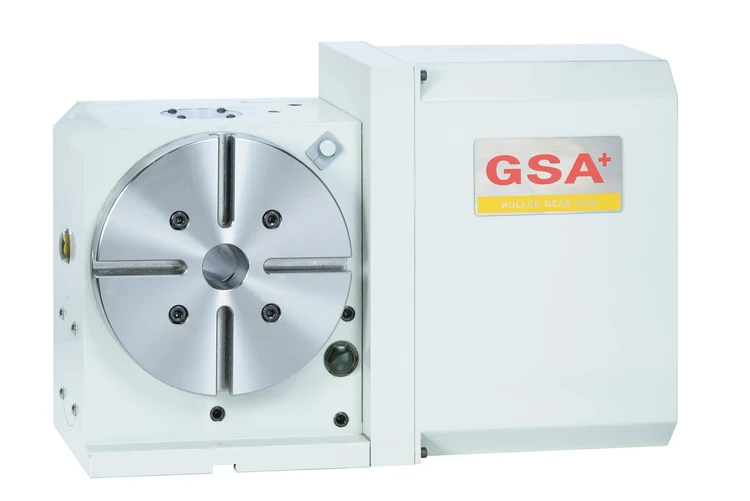

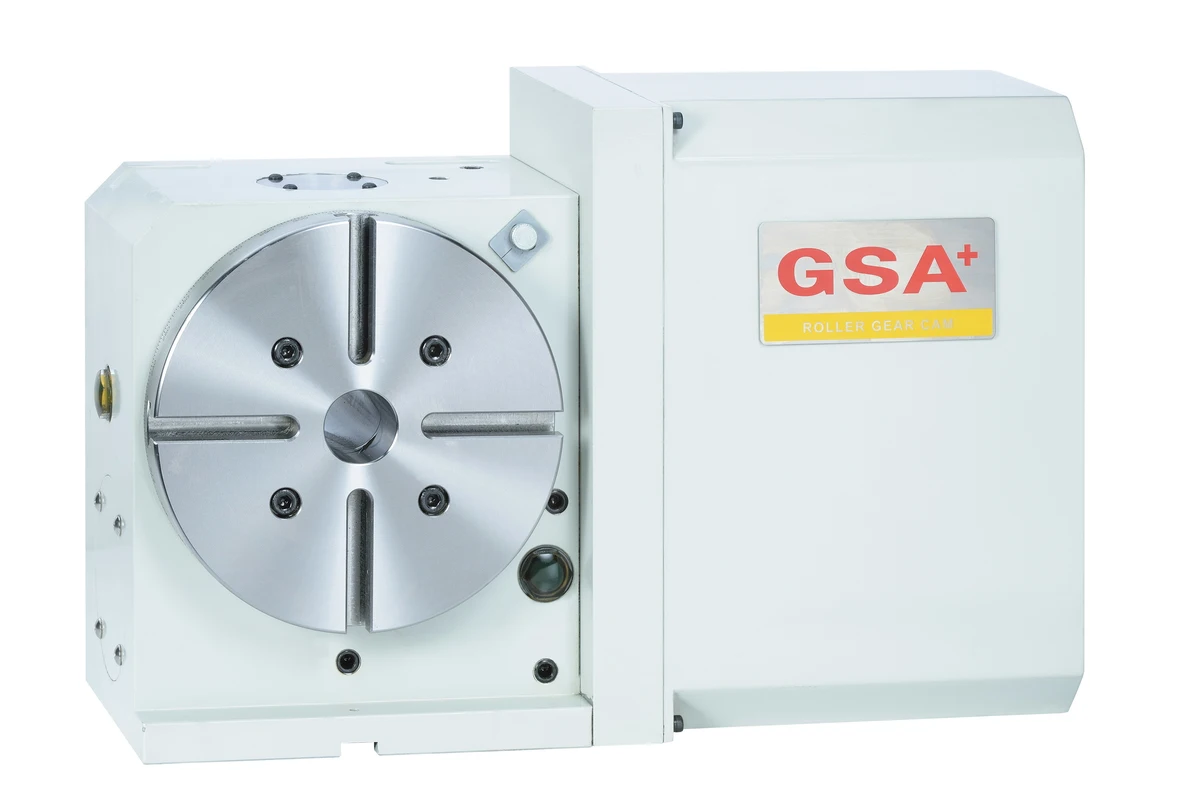

GSA RCT-250R

Table Dia (mm/inch) 250
Center Height in Vertical (mm / inch) 185
Table Height in Horizontal (mm / inch) 220
Over all Height in Vertical Without Motor Cover (mm / inch) 320
Thru-Hole Dia (mm / inch) 70H7 /70
Width of T-slot (mm / inch) 12H7
Width of Guide Block (mm / inch) 18h7
Servo motor type
- MELDAS HF-154T
- FANUC α8 i / 3000
- SIEMENS 1FK7063
- HEIDENHAIN QSY116E
Gear Ratio 1:40
Min. Indexing Unit degree (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 50
Pneu. clamp force (kg•m) (P:5kg / cm2) 45
Hydro. clamp force (kg•m) (P:20kg / cm2) 90
Indexing Accuracy Class (sec.) 20"
Repeatability (sec.) 4"
Max. Machining Force (kg•m) 60
N.W. (kgs) 120
