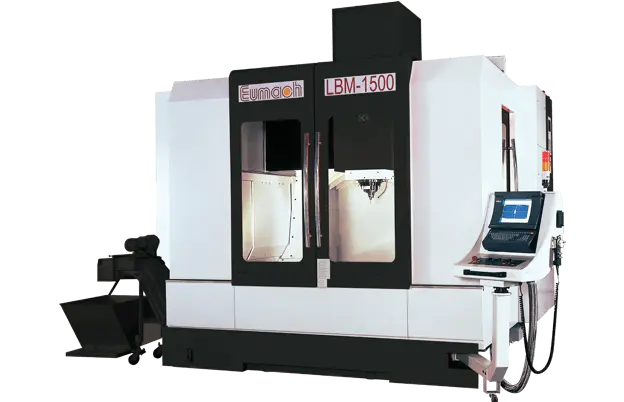

EUMACH LBM-1500
Have one to sell?
ConditionNew
New
The newest eumach bridge type vertical machining center not only with further innovations in rigidity, accuracy, speed and heavy cutting but also for true die / mold evolution.
Features:
Large workpiece load & traverse capacity
1,750 mm x 1,000 mm x 750 mm traverse, 1,750 mm twin column distance, 1,600 mm x 1,000 mm table size with up to 3,00 kgs workpiece load.
Rigid double column bridge type construction
The twin column & bridge is made of one piece Meehanite highest quality casting to ensure its rigidity and reduce vibrations during high speed heavy cutting.
Spindles with full power range
Powerful built-in motor spindle 18,000 RPM, HSK-A63, 26 & 32 kW / 124 & 154 Nm.
Advanced latest CNC digital controls
Heidenhain i TNC-530, Siemens 840D, Fanuc 0i-MF, 31i-MB
The right control in the right position
A swivel control panel located in right side of machine, easily move to the most suitable position to make the operator's job more straight-forward and enhances safety and productivity.
Table
Overall size ( mm ) 1,600 x 1,000
T-Slot ( mm ) 18 x 7 x 125
Maximum loading ( kgs ) 3,000
Travel
X axis ( mm ) 1,750 head left & right
Y axis ( mm ) 1,000 table in & out
Z axis ( mm ) 750 head up & down
Distance
Between 2 columns ( mm ) 1,750
Spindle to table top ( mm ) 107 ~ 857
Floor to table top ( mm ) 840
Spindle
Motor S1 / S6 : 26 / 32 kW, 124 / 154 Nm
Taper HSK-A63 ( BT#40)
Speed ( RPM ) 18,000 ( 24,000 )
Feedrate
Cutting ( m / min ) up to 20
Rapid x / y / z ( m / min ) 30 / 30 / 30
Minimum setting ( mm ) 0.001
Automatic tool changer
No. of tools carousel armless 16
Max. tool DIA. / length ( mm ) 80 / 250
Max. tool weight ( kgs ) 7
Coolant & Lubrication
Coolant tank volume ( liters ) 300
Pneumatic required ( kgf / cm2 ) 7
Lubrication tank ( liters ) 4
Accuracy
Position ( mm ) ± 0.005 / 300
Repeatability ( mm ) 0.003
Roundness ( mm ) 0.01 / 300 DIA.
Machine net weight ( kgs ) 15,000
