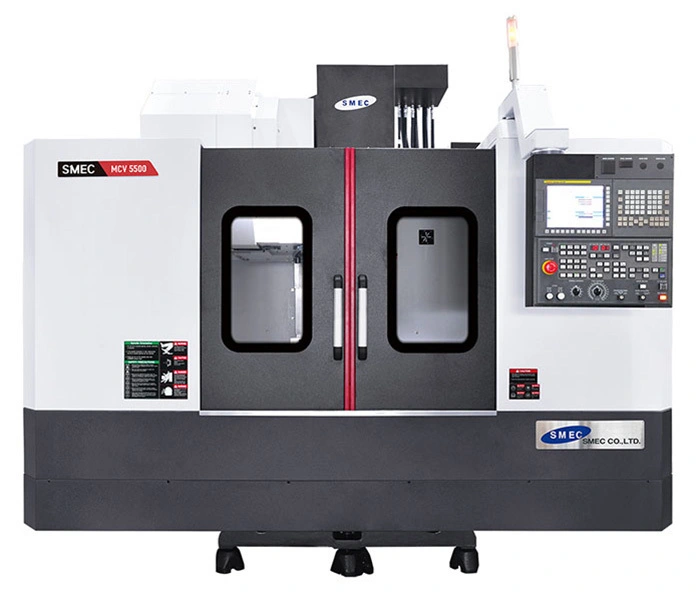

New SMEC MCV 5500 (12K) DIRECT | Vertical Machining Centers
Have one to sell?
ConditionNew
New
Travel X/Y/Z 41.33" x 21.65" x 20.47"
Distance from table top to spindle spindle nose 5.12" - 25.59"
Working Surface - table size 21.26” x 47.24”
Loading capacity 1763 lbs
Distance from Column to spindle center 23.9"
Spindle Speed 12000 rpm
Spindle Motor(Cont/Max) 15/30 hp
Max spindle torque 104.3 lb-ft
Rapid traverse(X/Z) 1,417/1,417/1,181 inch/min
Tool Shank CAT40
Tool Changing Time(T-T) 1.3
Magazine Capacity 30
Required floor space 143.2 x 141.4 x 109.4
Machine weight 14771 lbs
Controller Fanuc Fanuc 0i-MF+
