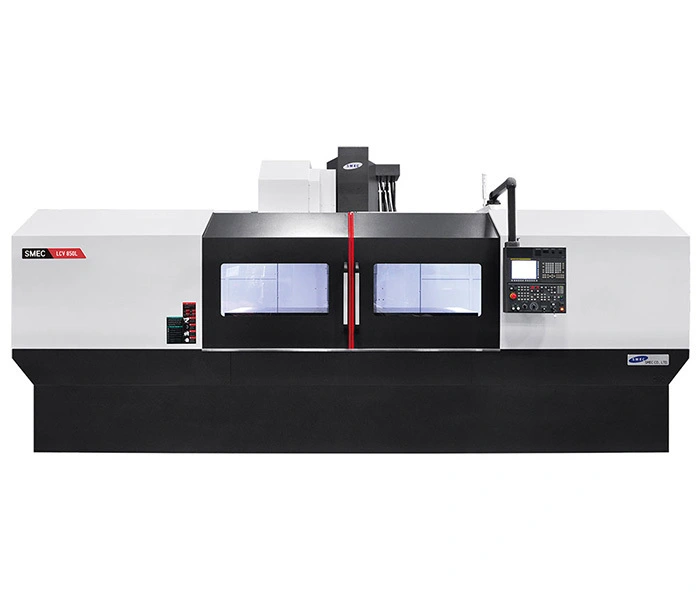

New SMEC LCV 850 (6K) GEAR | Vertical Machining Centers
Have one to sell?
ConditionNew
New
Travel X/Y/Z 78.74" x 33.46" x 31.50"
Distance from table top to spindle spindle nose 7.87" - 39.37"
Working Surface - table size 33.46" x 80.71"
Loading capacity 6600lbs
Distance from Column to spindle center 37.4"
Spindle Speed 6000rpm
Spindle Motor(30min/cont.) 25 hp
Max spindle torque 565.7 lb-ft
Rapid traverse(X/Z) 787/787/630 inch/min
Tool Shank CAT50
Tool Changing Time(T-T) 2.5
Magazine Capacity 40
Required floor space 150 x 142 x 150
Machine weight 42,991
Controller Fanuc Fnauc 0i-MF+
