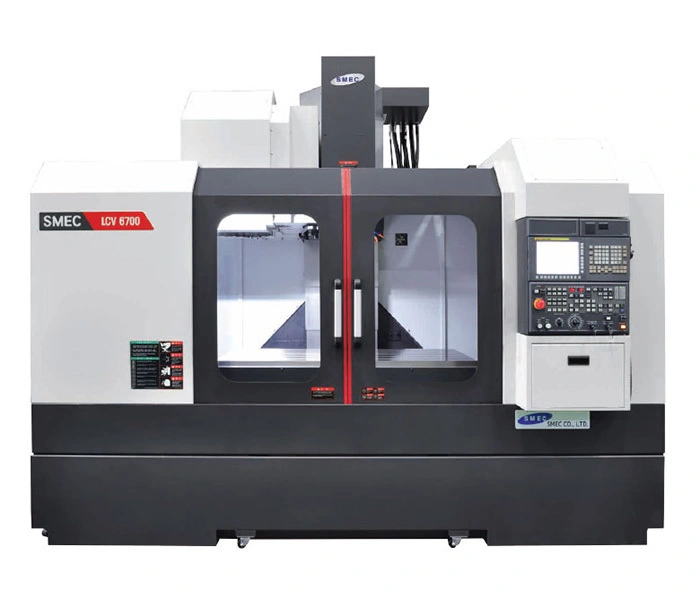

New SMEC LCV 6700 (6K) GEAR | Vertical Machining Centers
Have one to sell?
ConditionNew
New
Travel X/Y/Z 53.15"×26.38"×25.59"
Distance from table top to spindle spindle nose 7.85"~33.46"
Working Surface - table size 61.02"×26.38"
Loading capacity 2,200 lbs
Distance from Column to spindle center
Spindle Speed 6,000
Spindle Motor(30min/cont.) 20.1/14.7 hp
Max spindle torque 211.3/105.5 lb-ft
Rapid traverse(X/Y/Z) 1,181/1,181/944.8 inch/min
Tool Shank CAT 50
Tool Changing Time(T-T) 2.5(1.5)
Magazine Capacity 30(24)
Required floor space 104.3"×133.9"×124"
Machine weight 24,251 lbs
Controller Fanuc Fanuc 0i-MF+
