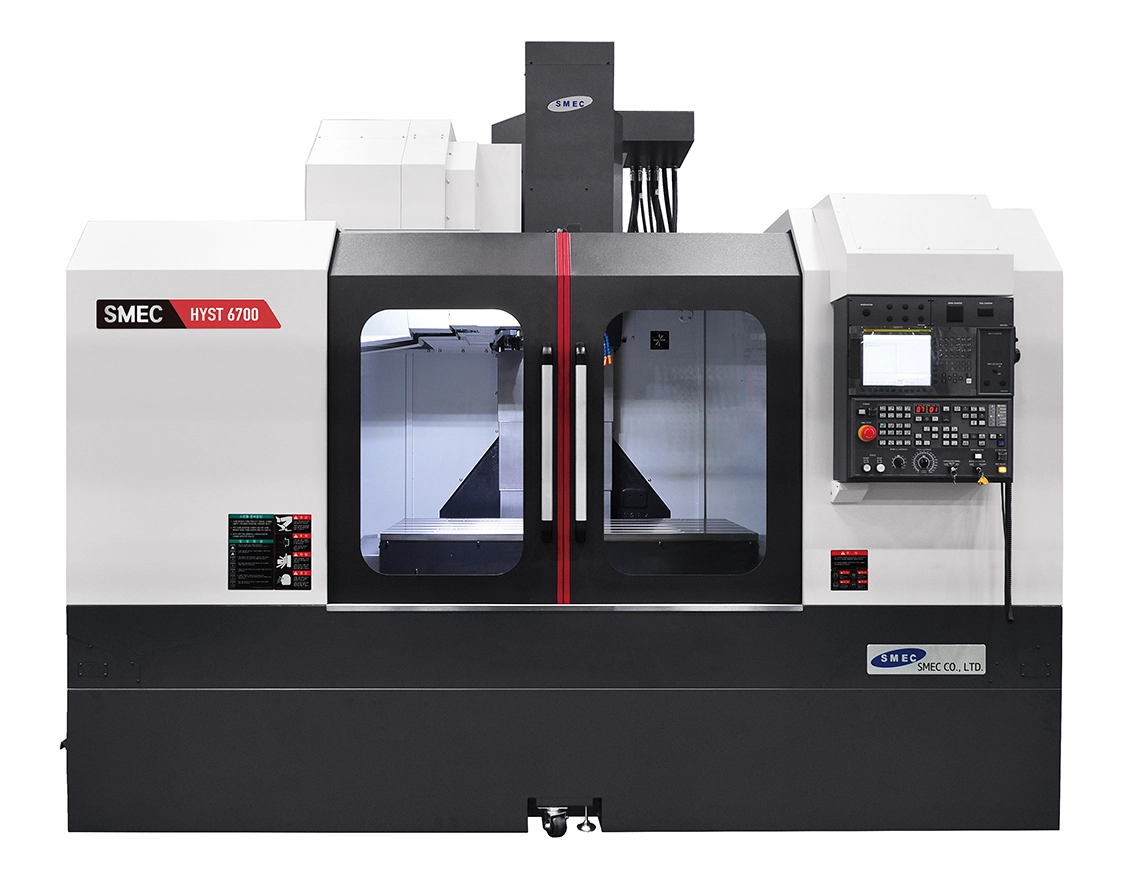

SMEC HYST 6700
Have one to sell?
ConditionNew
New
Hybrid Machining Center (X/Y axis LM Guide, Z axis Box guide)
Z- Axis Box Guide enhances rigidity and enables heavy duty cutting.
X/Y Axis LM guide improve travel precision and significantly reduces non-cutting time.
Travel X/Y/Z 53.15" x 26.4" x 25.6"
Distance from table top to spindle spindle nose 7.9" ~ 33.47"
Working Surface - table size 61" x 26.4"
Loading capacity 2,866 lbs
Distance from Column to spindle center
Spindle Speed 12,000 rpm
Spindle Motor(cont./max) 15/25
Max spindle torque 104 lb-ft
Rapid traverse(X/Z) 1,417/1,417/1,181 inch/min
Tool Shank CAT40
Tool Changing Time(T-T) 1.3
Magazine Capacity 30
Required floor space 176.7" x 99.5" x 119.9"
Machine weight 22,046 lbs
Machine weight 22,046 lbs
Controller Fanuc Fanuc 0i-MF+
