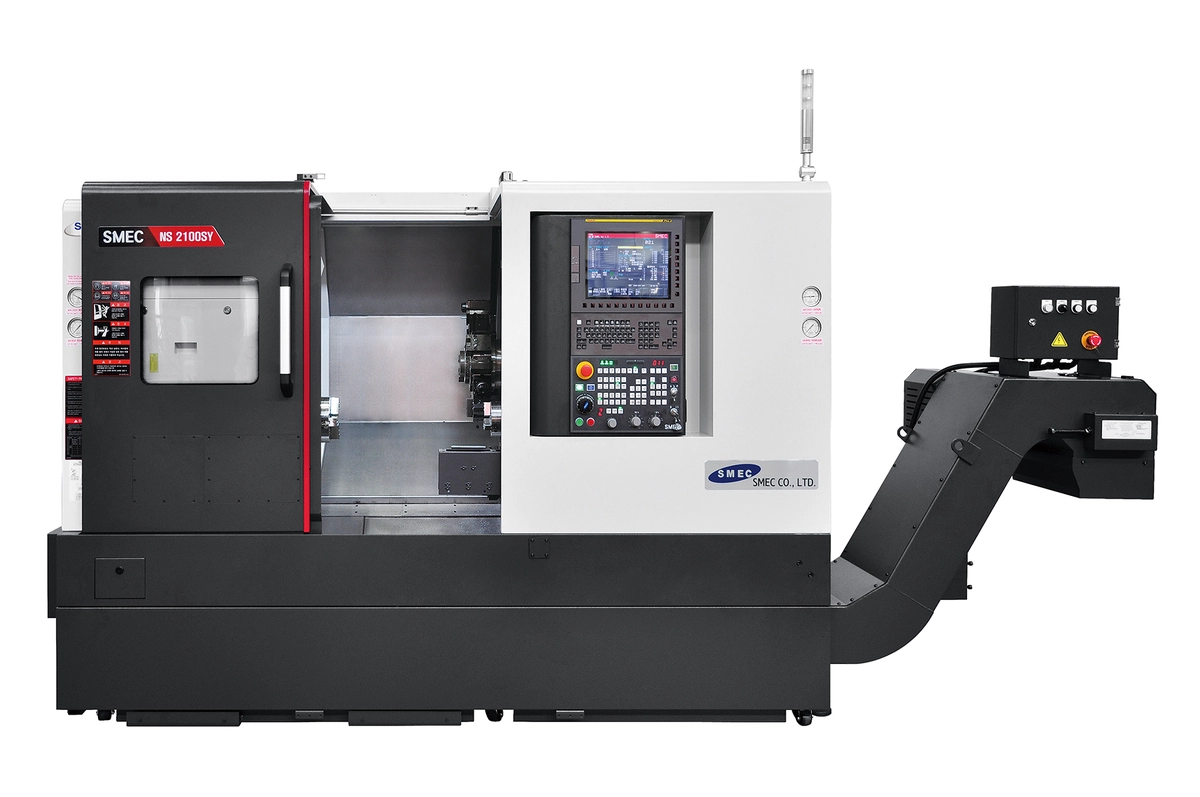

New SMEC NS 2100 SY/A | CNC Lathes

Capacity
Swing Over the Bed 32.29″
Swing Over the Cross Slide 21.26″
Max. Turning Diameter 14.89″
Max. Turning Length A [B] 20.53″ [19.26″]

Main Spindle
Chuck Size A [B](Sub) 6″ [8″] (5″)
Spindle speed A [B](Sub) 6,000 [4,500] (6,000) rpm
Spindle Nose A [B](Sub) A2-5 [A2-6] (Flat ⌀110)
Bore Diameter A [B](Sub) 2.40″ [3″] (1.7″)
Draw tube I.D. A [B](Sub) 2.05″ [2.68″] (1.42″)
Spindle motor (Cont./Max) 14.7/24.8
Sub Spindle motor (Cont./Max) 10.06/14.7

Travel
Axis Travel (X/Y/Z/ZB) 8.08″/4.34(±2.17)”/23.23″/23.23″
Guide ways LM Roller Guide
Rapid Traverse Rate (X/Y/Z/ZB) 1,181.11/393.71/1,417/1,417 inch/min

Turret
Number of Tool Positions 12 [24] BMT 45
Curvic Coupling 3 Piece hydraulic clamp/Servo index Indexing Time 0.15 sec
Tool size (turning and facing) 3/4” – Wedge clamp Tool size (boring bar maximum diameter) 1-1/4” Rotary Tool RPM 6,000 RPM

Tailstock travel (quill)
Tailstock Travel 23.23″
Tailstock Quill Travel 3.15″
Tailstock Quill Diameter 2.56″

General
Floor Space (with C/C) (L×W) 116.34″ x 68.12″(162″ x 68.12″)
Machine Weight A [B] 9,259 [9,281] lbs.
Controller Fanuc 0i-TF+
