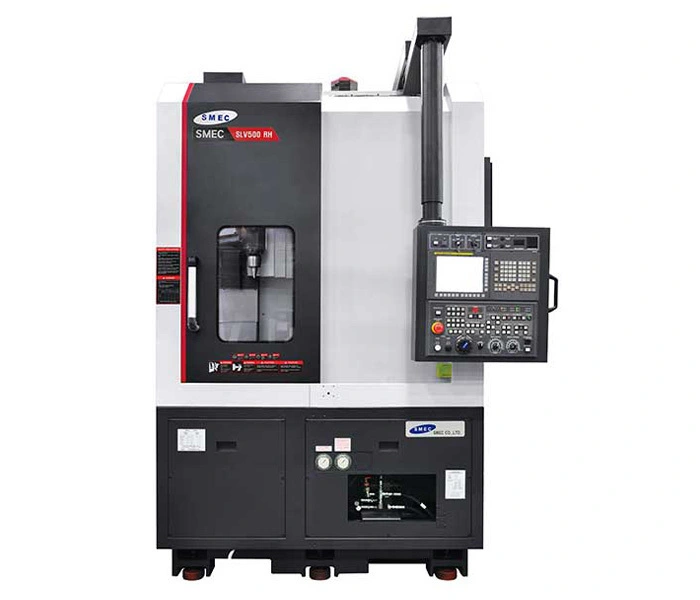

New SMEC SLV 500M L/R (12” BOX) | CNC Lathes

Swing over the bed 27.56
Max. turning diameter 19.68
Max. turning length 18.31
Bar Capacity(main/sub) -
Chuck size A/B/C A Type:12", B Type:15", C Type:18"
Spindle speed A / [B,C] 3,000 [2,000]
Spindle nose(Main/Sub) A2-8
Main Spindle motor(cont./30min) 24.8/29.5
Sub Spindle motor(cont./30min) 5/7.4
Rapid traverse(X/Y/Z/ZB) 787.4/787.4
Axis travel(X/Z) 12.48/19.49
Number of tool positions 12(BMT65)
Shank size for square tool 1×1
Shank size for boring bar 2
Machine weight 15,873
Machine dimension (L×W×H) [With Chip conveyor] 65.7 × 79.7 × 117.56 [65.7 × 140 × 117.56]
Controller Fanuc 0i TF+
Turret Type BMT 65
