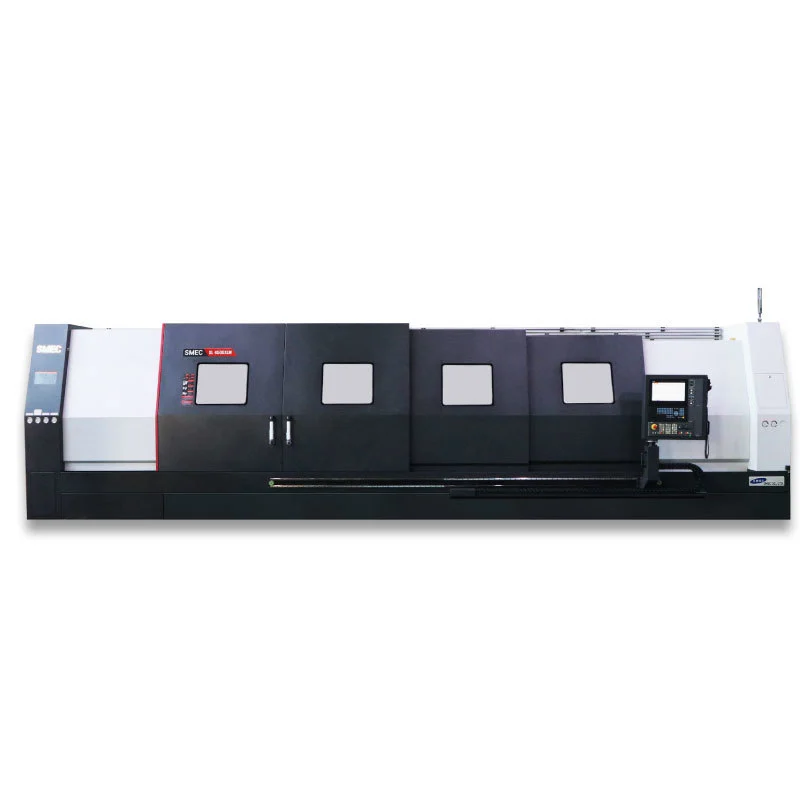

New SMEC SL 4500CXLY | CNC Lathes

Capacity
Swing Over the Bed 38.39″
Swing Over the Cross Slide 32.68″
Max. Turning Diameter 24.4″
Max. Milling Diameter 27.71″
Max. Turning Length 196.8″

Main Spindle
Chuck Size 24″
Spindle speed 1,200 rpm
Spindle Nose A2-15
Bore Diameter 7.12″
Draw tube I.D. 6.55″
Spindle motor (Cont./Max) 40/60 hp

Travel
Axis Travel (X/Y/Z) 13.7″/7.8/200.3″
Guide ways Box Guide
Rapid Traverse Rate (X/Y/Z) 787/590/393 inch/min

Turret
Number of Tool Positions 12 (BMT75)
Indexing Time 0.25 sec
Shank Size for Square Tool □1.25″
Shank Size for Boring Bar ⌀2.36″
Rotary Tool Speed 4,000 rpm
Rotary Tool Motor(Cont./Max) 7.4/10 hp

Tailstock (quill)
Tailstock Quill Travel 5.9″
Tailstock Quill Diameter 6.3″

General
Floor Space (with C/C) (L×W) 343″ x 98.1″(390″ x 98.1″)
Machine Weight 55,115 lbs.
Controller Fanuc 0i-TF+
