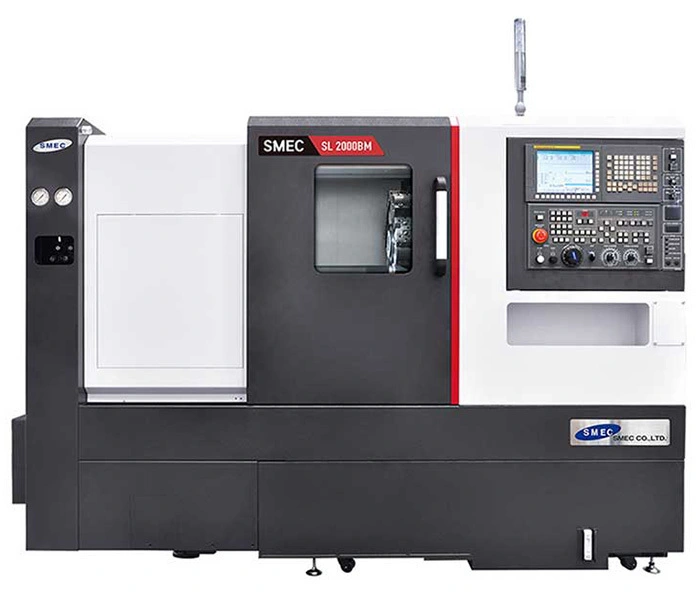

New SMEC SL 2000M/B | CNC Lathes

Capacity
Swing Over the Bed 22.45″
Swing Over the Cross Slide 18.12″
Max. Turning Diameter 14.65″
Max. Turning Length 20.48″

Main Spindle
Chuck Size A [B] 6″ [8″]
Spindle speed A [B] 6,000 [4,500]rpm
Spindle Nose A [B] A2-5 [A2-6]
Bore Diameter A [B] 2.40″ [3″]
Draw tube I.D. A [B] 2.05″ [2.68″]
Spindle motor (Cont./Max) 20.12/24.8

Travel
Axis Travel (X/Z) 8.47″/22.14″
Guide ways Box Guide
Rapid Traverse Rate (X/Z) 1,181.11/1,181.11 inch/min

Turret
Number of Tool Positions 12[24] (BMT55)
Indexing Time 0.2 sec S
hank Size for Square Tool □1″
Shank Size for Boring Bar ⌀1.58″
Rotary Tool Speed 5,000 rpm
Rotary Tool Motor(Cont./Max) 4.97/7.38 hp

Tailstock travel (quill)
Tailstock Travel 17.72″
Tailstock Quill Travel 3.15″
Tailstock Quill Diameter 2.96″

General
Floor Space (with C/C) (L×W) 108″ x 61″(147″ x 61″)
Machine Weight A [B] 8,377 [8,818] lbs.
Controller Fanuc 0i-TF+
