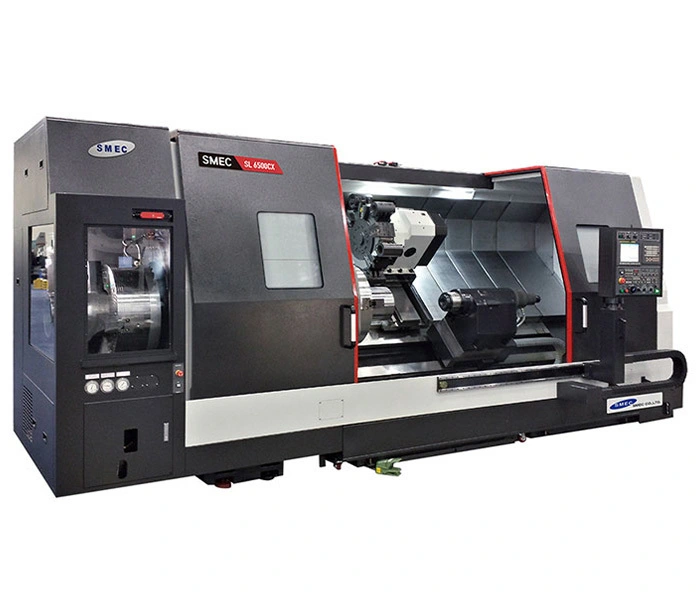

SMEC SL 6500CL CNC TURNING CENTER
Have one to sell?
ConditionNew
New
- Cast iron structure for superior dampening characteristics and thermal displacement
- Rigid 45 degree slant bed design for heavy-duty machining
- Torque tube design to minimize bending and twisting
- Integrated box ways for long-term rigidity and heavy-duty machining
Swing over the bed 40.6
Max. turning diameter 35.4
Max. turning length 126
Bar Capacity(main/sub) -
Chuck size(Main/Sub) 32” (option)
Spindle speed(Main/Sub) 300
Spindle nose(Main/Sub) A2-20
Main Spindle motor(cont./30min) 50/60
Rapid traverse(X/Y) 472/394
Axis travel(X/Z) 18.5/128.74
Number of tool positions 12(BMT85)
Shank size for square tool 1.25
Shank size for boring bar 3.0
Tailstock Travel(quill) 128.74
Machine weight 48,500
Floor Space(L×W) 291×109
Controller Fanuc Oi-TF
