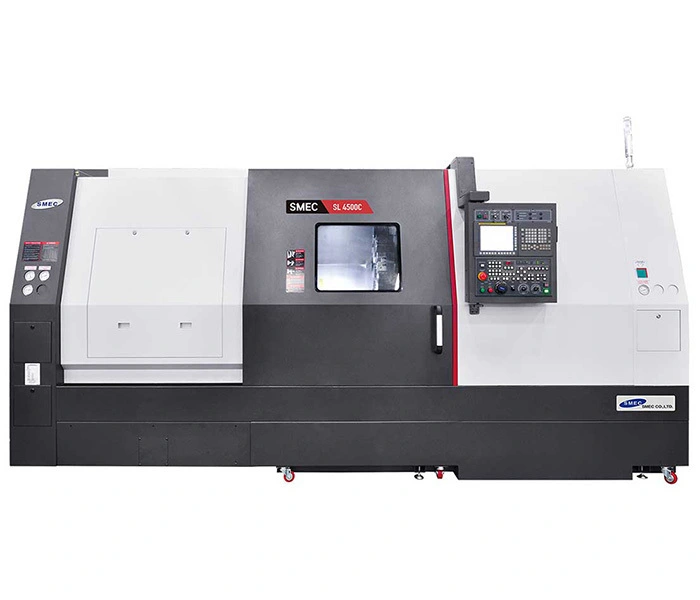

New SMEC SL 4500CL | CNC Lathes

Have one to sell?
972-424-4095
Sales@campat.com
ConditionNew
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
SMEC
Model:
SL 4500CL
Condition:
Build To Order
Status:
For Sale
Swing30.51"774.95 mm
Machining Length49.21"1,249.9 mm
Chuck Size24"609.6 mm
Bar Capacity6.56"166.62 mm
Power5,040 hp3,758.3 kW
Max RPM1,200 RPM1,200 RPM
Turning Dia26.77"679.96 mm
TailstockYesYes

Swing over the bed 30.51
Max. turning diameter 26.77
Max. turning length 49.21
Bar Capacity 6.56
Chuck size 24
Spindle speed 1200
Spindle nose A2-15
Spindle motor(cont./30min) 50/40
Rapid traverse(X/Z) 787/787
Axis travel(X/Z) 13.78/52.17
Number of tool positions 12
Shank size for square tool 1 1/4
Shank size for boring bar 2 1/2
Tailstock travel(quill) 5.91
Machine weight 22,046
Floor Space(L×W) 232.9 x 79.9
Controller Fanuc Oi-TF

Overview

Type:
CNC Lathes
Manufacturer:
SMEC
Model:
SL 4500CL
Condition:
Build To Order
Status:
For Sale

Specifications

Imperial

Swing30.51"
Machining Length49.21"
Chuck Size24"
Bar Capacity6.56"
Power5,040 hp
Max RPM1,200 RPM
Turning Dia26.77"
TailstockYes

Swing over the bed 30.51
Max. turning diameter 26.77
Max. turning length 49.21
Bar Capacity 6.56
Chuck size 24
Spindle speed 1200
Spindle nose A2-15
Spindle motor(cont./30min) 50/40
Rapid traverse(X/Z) 787/787
Axis travel(X/Z) 13.78/52.17
Number of tool positions 12
Shank size for square tool 1 1/4
Shank size for boring bar 2 1/2
Tailstock travel(quill) 5.91
Machine weight 22,046
Floor Space(L×W) 232.9 x 79.9
Controller Fanuc Oi-TF
