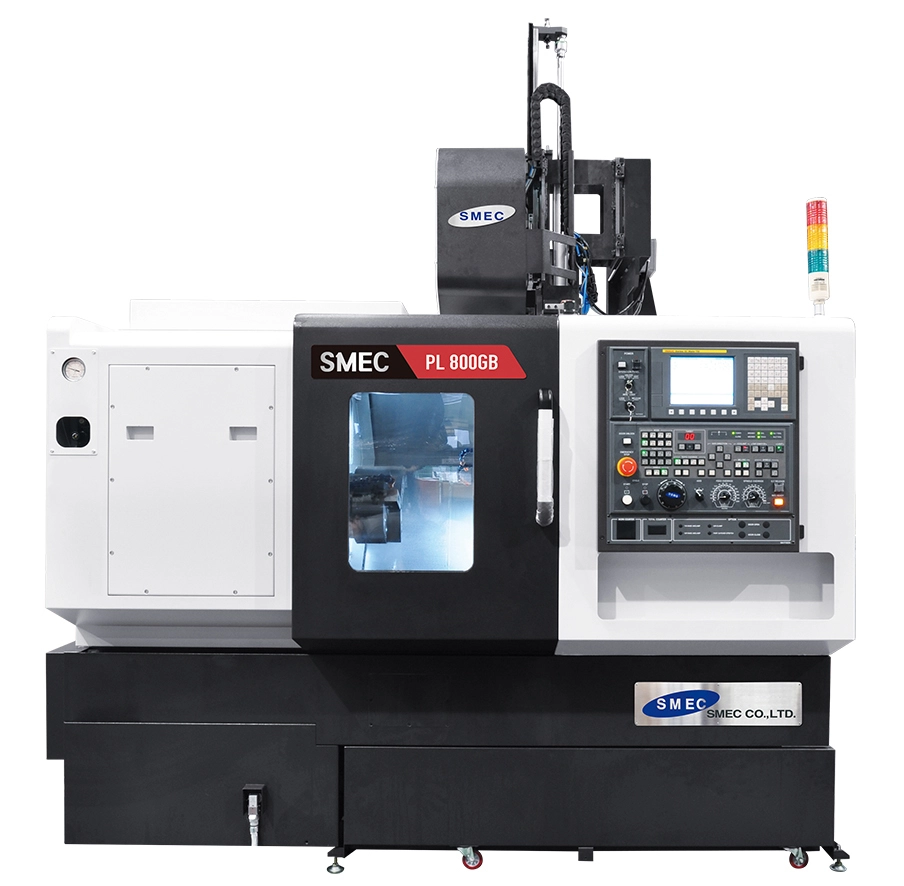

New SMEC PL 800GB | CNC Lathes

Capacity
Swing Over the Bed 31.5″
Swing Over the Cross
Slide 25.6″ Max.
Grinding Diameter 25.6″
Max. Grinding Length 5.91″

Spindle
Spindle speed 2,200 rpm
Spindle Nose A2-6
Spindle Bore 2.41
Main Spindle motor (Cont./Max) 14.76/20.12

Travel
Axis Travel (X/Z) 15.75″/15.75″
Guide ways Box Guide
Rapid Traverse Rate (X/Z) 944.89/1,181.11 inch/min

Grinding Spindle
Spindle Speed 6,000 rpm
Spindle Motor (cont/max) 3.7/5.5 hp
Tool Shank Type BBT40
Spindle Lubrication and Cooling Grease encapsulation

ATC (Optional)
Max Number of Tools 2 Tool
Change Method Double Arm Swing

General
Floor Space (L×W) 113.75″ x 71.11″
Machine Weight A [B] 7,936 lbs.
Controller Fanuc 0i-TF+
