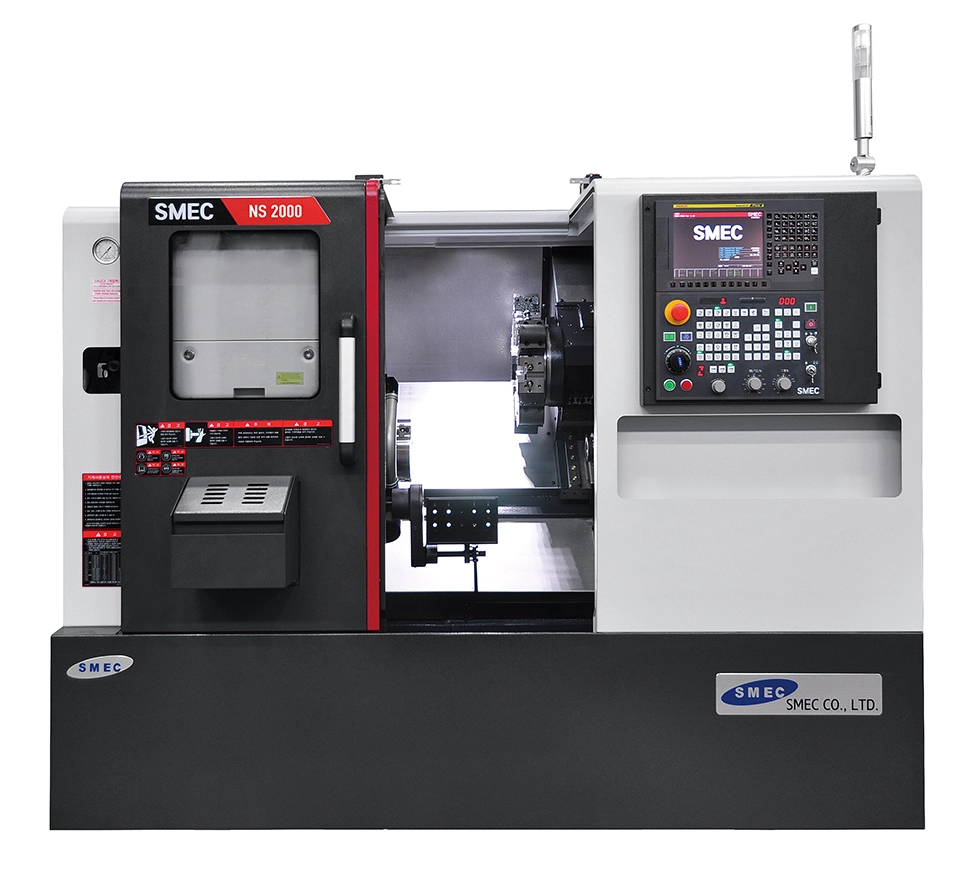

New SMEC NS 2000 L/B | CNC Lathes

Capacity
Swing Over the Bed 22.24″
Swing Over the Cross Slide 15.55″
Max. Turning Diameter 12.20″
Max. Turning Length A [B] 21.03″ [19.34″]

Main Spindle
Chuck Size A [B] 6″ [8″]
Spindle speed A [B] 6,000 [4,500]rpm
Spindle Nose A [B] A2-5 [A2-6]
Bore Diameter A [B] 2.40″ [3″]
Draw tube I.D. A [B] 2.05″ [2.68″]
Spindle motor (Cont./Max) 14.7/24.8

Travel
Axis Travel (X/Z) 6.89″/22.84″
Guide ways LM Roller Guide
Rapid Traverse Rate (X/Z) 1,417/1,417 inch/min

Turret
Number of Tool Positions 10
Indexing Time 0.2 sec
Shank Size for Square Tool □1.00
Shank Size for Boring Bar ⌀1.58

Tailstock travel (quill)
Tailstock Travel 13.78″
Tailstock Quill Travel 3.15″
Tailstock Quill Diameter 2.56″

General
Floor Space (with C/C) (L×W) 102″ x 63″(146″ x 63″)
Machine Weight A [B] 6,284 [6,481] lbs.
Controller Fanuc 0i-TF+
