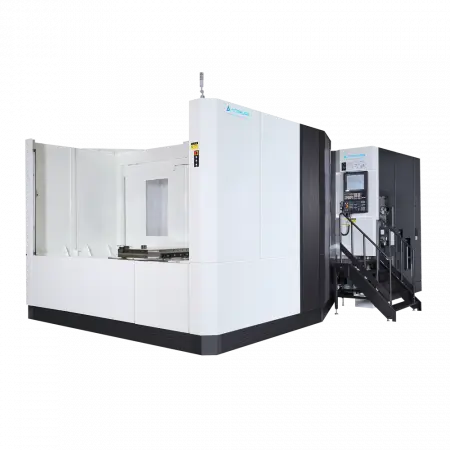

Mycenter-HX1000G/HX1250G
Have one to sell?
ConditionNew
New
Features
• Solid box way design combined with the rigidity of high grade meehanite casting
• Positioning accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
• Linear scale feedback on X, Y, Z axes
• Full 4th axis rotary table with high resolution scale
• Maximum workpiece size 80.71” dia x 61.02” height. Table load capacity of 6,600Lbs +
• Patented twin ballscrew/twin servo motor driven axis drive system
• Flexibility with the ability to add a 5th axis in the field
Features
• Solid box way design combined with the rigidity of high grade meehanite casting
• Positioning accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
• Linear scale feedback on X, Y, Z axes
• Full 4th axis rotary table with high resolution scale
• Maximum workpiece size 80.71” dia x 61.02” height. Table load capacity of 6,600Lbs +
• Patented twin ballscrew/twin servo motor driven axis drive system
• Flexibility with the ability to add a 5th axis in the field
Imperial
| X | 80.31" |
| Y | 51.97" |
| Z | 53.94" |
| RPM | 8,000 RPM |
| Taper | NST No. 50 |
| # Axis | 3 |
