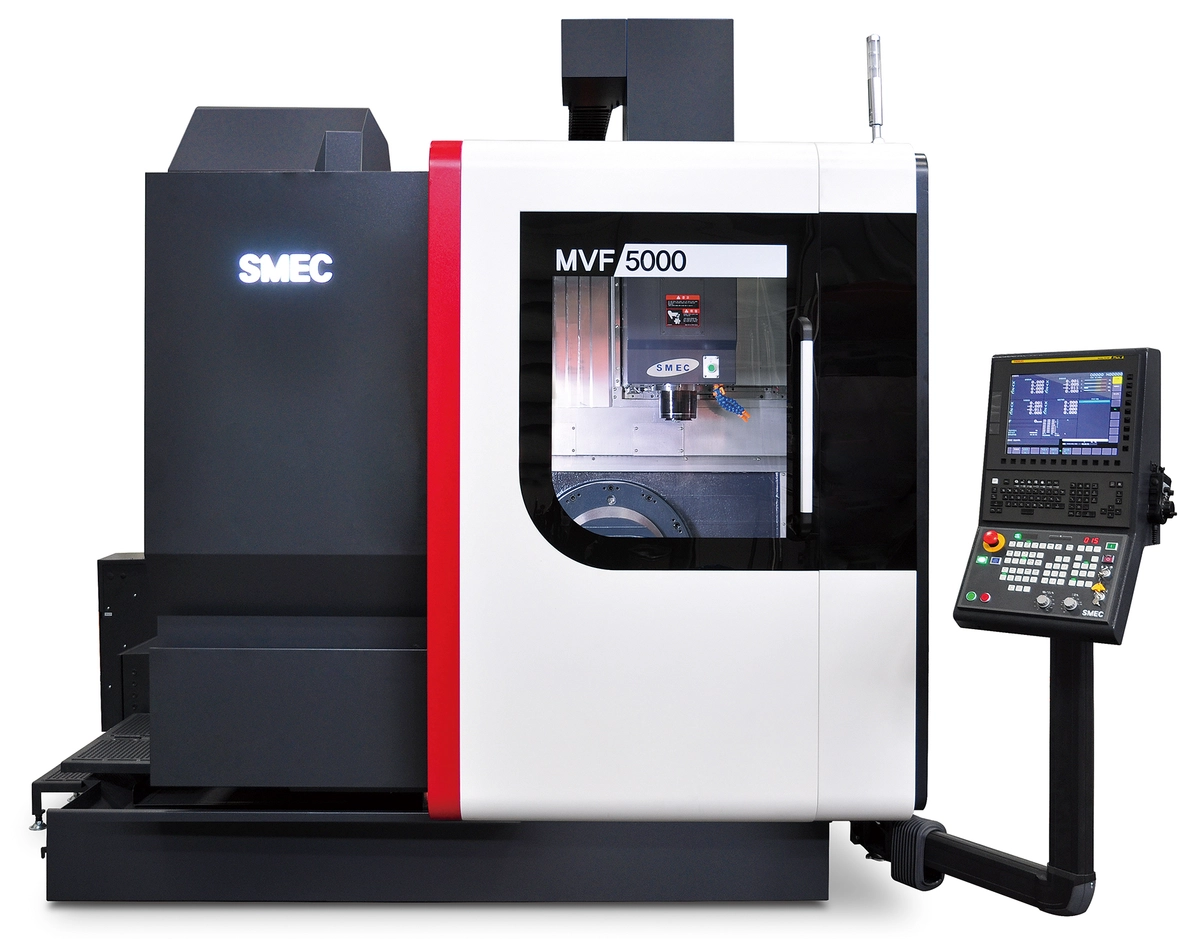

New SMEC MVF 5000 | Vertical Machining Centers (5-Axis or More)
Have one to sell?
ConditionNew
New
Travel X/Y/Z 63" x 22.4" x 20.4"
Distance from table top to spindle spindle nose 5.9" ~ 26.38"
Working Surface - table size ∅ 19.6" (∅ 500mm)
Loading capacity 1,102 lbs
Distance from Column to spindle center
Spindle Speed 12,000 rpm
Spindle Motor(cont./max) 15/25
Max spindle torque 87 lb-ft
Rapid traverse(X/Z) 1,574/1,574/1,574 inch/min
Tool Shank CAT40
Tool Changing Time(T-T) 1.3
Magazine Capacity 30
Required floor space 151.4" x 122.7" x 122.7"
Machine weight 17,636 lbs
Controller Fanuc Fanuc 0i-MF+
