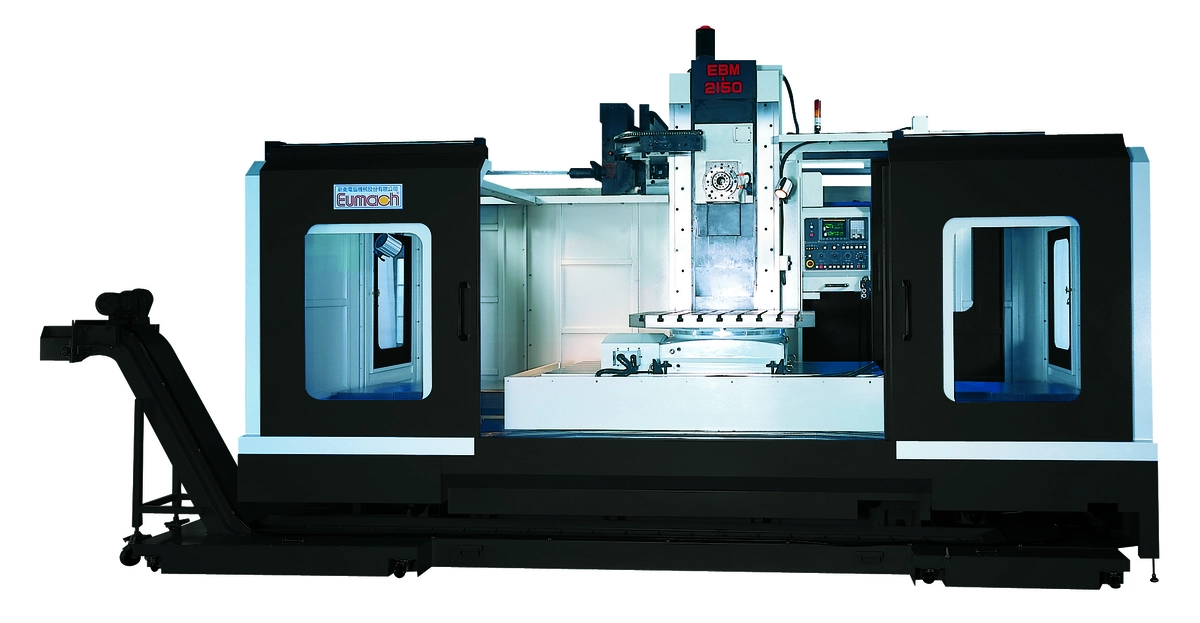

New EUMACH EBM-2150 | Horizontal Machining Centers

Table
Overall size ( mm ) 2,200 x 1,220
Working area ( mm ) 2,200 x 1,100
T slots ( size x No. x pitch ) ( mm ) 22 x 7 x 125
Maximum loading ( kg ) 4,000

Travel
X / Y / Z axis ( mm ) 2,150 / 1,400 / 1,100

Distances
Spindle nose to table edge ( mm ) -249 ~ 930
Spindle center to table top ( mm ) 190 ~ 1,590
Spindle nose to column surface ( mm ) 249
Floor to table ( mm ) 995

Spindle
Taper ( ISO ) BT#50
Speed ( RPM ) 4,000 ( 6,000 )
Motor ( kW ) 15

Axis motors
X & Z axis ( Nm ) 27 / 27
Y axis ( Nm ) 27 with brake
Cutting feed rate ( mm / min ) 1 ~ 5,000
Rapid feed rate ( m ) 10 ( 15 )
Minmum setting ( mm ) 0.001

Automatic tool changer
Type of ATC Swing ARM
No. of ATC ( Tools ) 32 ( 40, 60 )
Max. tool ( dia. / length ) ( mm ) 250 / 300
Max. tool weight ( kg ) 15
Tool to tool ( sec ) 3.5

Ballscrews on X / Y / Z
Diameter ( mm ) 63 / 50 / 63
Precision class ( C3 ) ( mm / 300 mm ) 0.008

Coolant & lubrication
Coolant motor power ( kW ) 0.86
Coolant tank volume ( L ) 350
Coolant motor capacity ( L / min ) 20
Lubrication motor power ( WATT ) 25
Lubrication tank volume ( L ) 4

Accuracy
Positioning ( mm ) JIS 6388 : ±0.005 / 300, VDI 3441 : P0.014
Repeatability ( mm ) JIS 6388 : ±0.003 , VDI 3441 : PS0.01
Roundness ( mm ) JIS 6388 : ±0.01 / 300 , Diameter

Miscellaneous
Machine net weight ( kg ) 21,000
Power required ( KVA ) 35
Pneumatic required ( kg / cm2) 7
