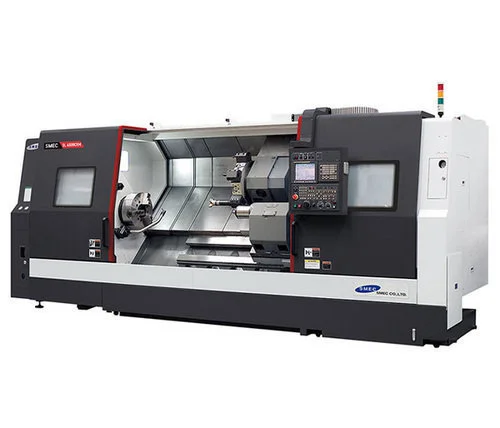

New SMEC SL 4500CXM 24″ | CNC Lathes

Capacity
Swing Over the Bed 30.5″
Swing Over the Cross Slide 24.8″
Max. Turning Diameter 24.4″
Max. Milling Diameter 28″
Max. Turning Length 88.7″

Main Spindle
Chuck Size 24″
Spindle speed 1,200 rpm
Spindle Nose A2-15
Bore Diameter 7.12″
Draw tube I.D. 6.55″
Spindle motor (Cont./Max) 40/60 hp

Travel
Axis Travel (X/Z) 13.7″/91.7″
Guide ways Box Guide
Rapid Traverse Rate (X/Z) 787/709 inch/min

Turret
Number of Tool Positions 12 (BMT75)
Indexing Time 0.25 sec
Shank Size for Square Tool □1.25″
Shank Size for Boring Bar ⌀2.5″
Rotary Tool Speed 4,000 rpm
Rotary Tool Motor(Cont./Max) 7.4/10 hp

Tailstock (quill)
Tailstock Quill Travel 5.9″
Tailstock Quill Diameter 6.3″

General
Floor Space (with C/C) (L×W) 220″ x 84.8″(257.1″ x 84.8″)
Machine Weight 28,660 lbs.
Controller Fanuc 0i-TF+
