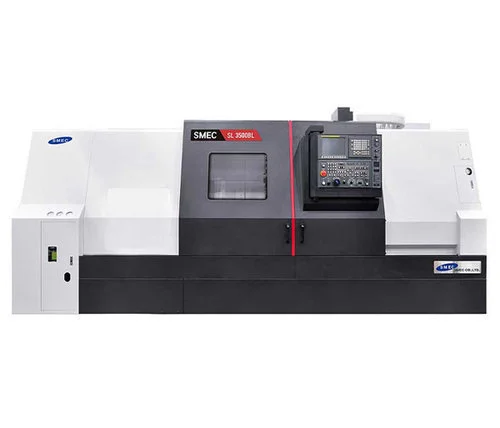

New SMEC SL 3500BLM | CNC Lathes

Capacity
Swing Over the Bed 26.78″
Swing Over the Cross Slide 19.89″
Max. Turning Diameter 19.69″
Max. Milling Diameter 20.7″
Max. Turning Length 59.06″

Main Spindle
Chuck Size 15″
Spindle speed 2,000 rpm
Spindle Nose A2-11
Bore Diameter 5.2″
Draw tube I.D. 4.63″
Spindle motor (Cont./Max) 24.81/34.87 hp

Travel
Axis Travel (X/Z) 11.03″/62″
Guide ways Box Guide
Rapid Traverse Rate (X/Z) 787.41/944.89 inch/min

Turret
Number of Tool Positions 12 (BMT65)
Indexing Time 0.25 sec
Shank Size for Square Tool □1″
Shank Size for Boring Bar ⌀1.97″
Rotary Tool Speed 4,500 rpm
Rotary Tool Motor(Cont./Max) 4.97/7.38 hp

Tailstock (quill)
Tailstock Quill Travel 4.73″
Tailstock Quill Diameter 5.12″

General
Floor Space (with C/C) (L×W) 200″ x 74.22″(234″ x 74.22″)
Machine Weight 20,503 lbs.
Controller Fanuc 0i-TF+
