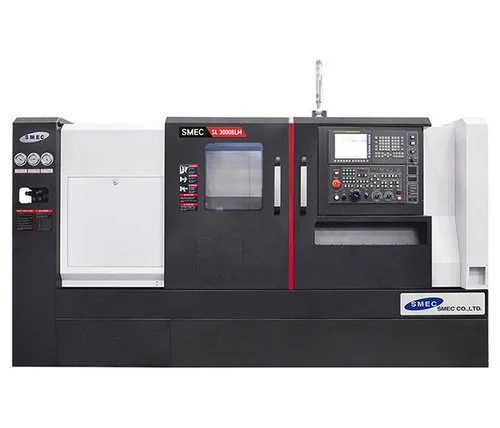

New SMEC SL 3000BLM | CNC Lathes

Capacity
Swing Over the Bed 25.60″
Swing Over the Cross Slide 18.90″
Max. Turning Diameter 15.95″
Max. Milling Diameter 16.93″
Max. Turning Length 37.64″

Main Spindle
Chuck Size 12″
Spindle speed 3,000 rpm
Spindle Nose A2-8 Bore
Diameter 4.14″
Draw tube I.D. 3.54″
Spindle motor (Cont./Max) 24.81/34.87 hp

Travel
Axis Travel (X/Z) 9.65″/40.95″
Guide ways Box Guide
Rapid Traverse Rate (X/Z) 944.89/1,181.11 inch/min

Turret
Number of Tool Positions 12[24] (BMT65)
Indexing Time 0.2 sec
Shank Size for Square Tool □1″
Shank Size for Boring Bar ⌀2″
Rotary Tool Speed 5,000 rpm
Rotary Tool Motor(Cont./Max) 4.97/7.38 hp

Tailstock (quill)
Tailstock Quill Travel 3.94″
Tailstock Quill Diameter 4.34″

General
Floor Space (with C/C) (L×W) 143″ x 64″(187″ x 64″)
Machine Weight 14,110 lbs.
Controller Fanuc 0i-TF+
