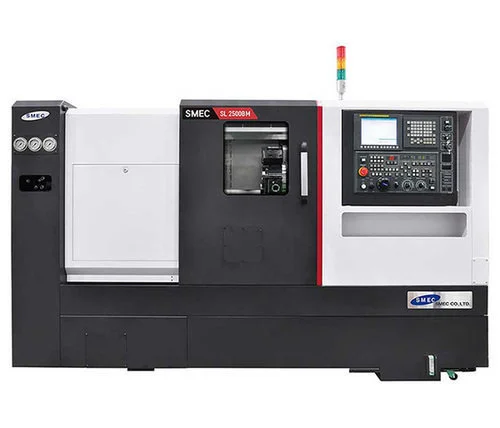

New SMEC SL 2500BM | CNC Lathes

Capacity
Swing Over the Bed 25.60″
Swing Over the Cross Slide 18.90″
Max. Turning Diameter 15.95″
Max. Milling Diameter 16.93″
Max. Turning Length 19.85″

Main Spindle
Chuck Size 10″
Spindle speed 3,500 rpm
Spindle Nose A2-8
Bore Diameter 3.39″
Draw tube I.D. 3.04″
Spindle motor (Cont./Max) 20.12/24.8

Travel
Axis Travel (X/Z) 9.65″/21.26″
Guide ways Box Guide
Rapid Traverse Rate (X/Z) 944.89/1,181.11 inch/min

Turret
Number of Tool Positions 12[24] (BMT65)
Indexing Time 0.2 sec S
hank Size for Square Tool □1″
Shank Size for Boring Bar ⌀2″
Rotary Tool Speed 5,000 rpm
Rotary Tool Motor(Cont./Max) 4.97/7.38 hp

Tailstock (quill)
Tailstock Quill Travel 3.94″
Tailstock Quill Diameter 4.34″

General
Floor Space (with C/C) (L×W) 123.04″ x 64″(167″ x 64″)
Machine Weight 11,244 lbs.
Controller Fanuc 0i-TF+
