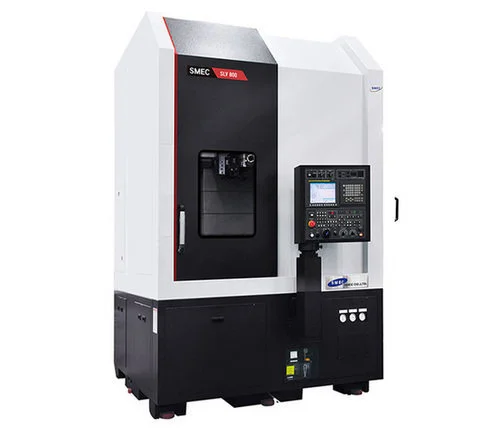

New SMEC SLV 800 RH/LH | 5-Axis or More CNC Lathes
Have one to sell?
ConditionNew
New
Swing over the bed 35.04
Max. turning diameter 32.68
Max. turning length 31.50
Bar Capacity
Chuck size A/B/C A:18,15 B: 21 C: 24
Spindle speed A/B/C A: 2,000 B: 1,800 C:1,500
Spindle nose(Main/Sub) A2-11
Main Spindle motor(cont./30min) [49.6/40.2]
Mill Spindle motor(cont./30min) -
Rapid traverse(X/Y/Z/ZB) 787.4/787.4
Axis travel(X/Z) 16.93/31.50
Number of tool positions 12
Shank size for square tool 1.25
Shank size for boring bar 2.5
Machine weight 24,250
Machine dimension (L×W×H) 80.79×109.53×137.44
Controller Fanuc 0i-TF+
Turret Type BMT 75
