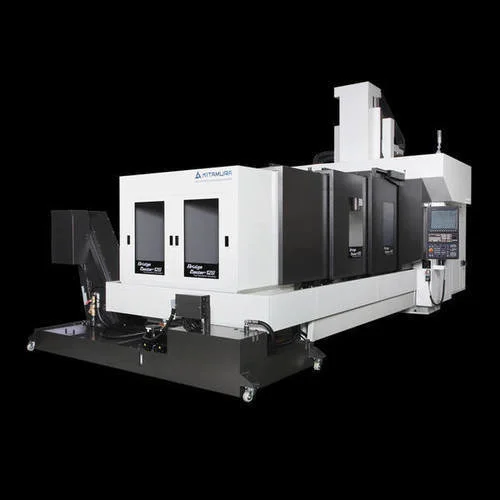

New KITAMURA BRIDGECENTER-12G | Bridge (Double-Column) & Gantry Machining Centers
Have one to sell?
ConditionNew
New
Features
• 120" extended X-Axis stroke offers flexibility in large part processing that requires increased levels of rigidity and higher levels of precision and accuracy.
• Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
• Rigid Meehanite cast iron construction with induction hardened solid box ways
• #50, Gear Driven, High Speed, High Torque 12,000rpm Dual Contact Spindle
• Patented double column bridge type design provides expansive work envelope and superior rigidity
• Linear scale feedback in X, Y, Z axes
• A unique optional 5-axis articulating head can be incorporated for multi angle, complex part machining made easy
• 13,300 Lb table capacity provides added benefits for larger, heavier, more powerful machining
Features
• 120" extended X-Axis stroke offers flexibility in large part processing that requires increased levels of rigidity and higher levels of precision and accuracy.
• Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
• Rigid Meehanite cast iron construction with induction hardened solid box ways
• #50, Gear Driven, High Speed, High Torque 12,000rpm Dual Contact Spindle
• Patented double column bridge type design provides expansive work envelope and superior rigidity
• Linear scale feedback in X, Y, Z axes
• A unique optional 5-axis articulating head can be incorporated for multi angle, complex part machining made easy
• 13,300 Lb table capacity provides added benefits for larger, heavier, more powerful machining
Imperial
| X | 120" |
| Y | 63.6" |
| Z | 31.5" |
| RPM | 12,000 RPM |
| # ATC | 40 |
| Taper | NST No. 50 |
| Table-W | 53.9" |
| Table-L | 137.8" |
