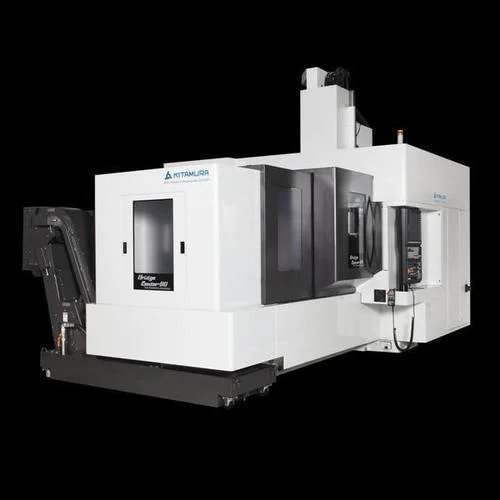

New KITAMURA BRIDGECENTER-8G#50 | Bridge (Double-Column) & Gantry Machining Centers
Have one to sell?
ConditionNew
New
Features
• Ideal for parts requiring heavier cutting loads, and parts that require a higher level of precision and accuracy. Excellent for Die/Mold applications.
• Positioning Accuracy: ±0.000078”/Full Stroke, Repeatability: ±0.000039”
• Rigid Meehanite cast iron construction with induction hardened solid box ways
• #50, High Speed, High torque 12,000rpm, Dual Contact, 4-Step Gear Driven Spindle
• Double column design with patented triangular crossbeam provides expansive work envelope and superior rigidity when compared with C-Frame style machines
• Linear scale feedback in X, Y, Z axes
• Space saving and compact, the Bridgecenter-8G measures only 137.6" x 230.9" (3,494 x 5,866mm) on your floor!
• 7,700 Lb table capacity allows for the capacity to machine larger and heavier work pieces
Features
• Ideal for parts requiring heavier cutting loads, and parts that require a higher level of precision and accuracy. Excellent for Die/Mold applications.
• Positioning Accuracy: ±0.000078”/Full Stroke, Repeatability: ±0.000039”
• Rigid Meehanite cast iron construction with induction hardened solid box ways
• #50, High Speed, High torque 12,000rpm, Dual Contact, 4-Step Gear Driven Spindle
• Double column design with patented triangular crossbeam provides expansive work envelope and superior rigidity when compared with C-Frame style machines
• Linear scale feedback in X, Y, Z axes
• Space saving and compact, the Bridgecenter-8G measures only 137.6" x 230.9" (3,494 x 5,866mm) on your floor!
• 7,700 Lb table capacity allows for the capacity to machine larger and heavier work pieces
Imperial
| X | 80" |
| Y | 43.1" |
| Z | 28" |
| RPM | 12,000 RPM |
| # ATC | 40 |
| Taper | NST No. 50 |
| Table-W | 35.4" |
| Table-L | 98.4" |
