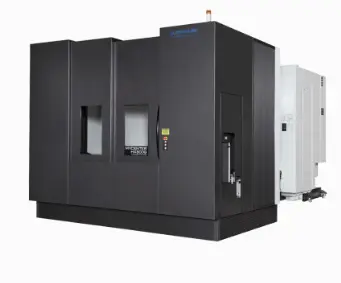

KITAMURA MYCENTER-HX800G/1000
Have one to sell?
ConditionNew
New
Features
• 12,000rpm and optional 8,000rpm geared spindle configurations. High speed, high torque. HSK-A100 spindle available as an option
• Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
• Solid box way construction, linear scales on all axes and twin ballscrew design in the X, Y and Z axes
• Full 4th axis rotary table for 360ᴼ cutting capability
• World's fastest rapid feed rates of 2,362ipm on induction hardened solid box ways
• Standard 2-station APC offers the ability to add pallets and pallet pool systems in the field
• Beats the competition in work envelope size and stroke!
Features
• 12,000rpm and optional 8,000rpm geared spindle configurations. High speed, high torque. HSK-A100 spindle available as an option
• Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
• Solid box way construction, linear scales on all axes and twin ballscrew design in the X, Y and Z axes
• Full 4th axis rotary table for 360ᴼ cutting capability
• World's fastest rapid feed rates of 2,362ipm on induction hardened solid box ways
• Standard 2-station APC offers the ability to add pallets and pallet pool systems in the field
• Beats the competition in work envelope size and stroke!
Imperial
| X | 61" |
| Y | 51.2" |
| Z | 55.1" |
| RPM | 12,000 RPM |
| # ATC | 62 |
| Taper | NST No. 50 |
| Pallet-W | 31.5" |
| Pallet-L | 31.5" |
| # Axis | 3 |
