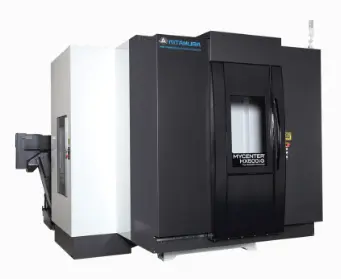

KITAMURA MYCENTER-HX500iG/630 #40
Have one to sell?
ConditionNew
New
Features
• #40 Taper, 20,000rpm and #50 Taper, 12,000rpm geared spindle configurations. HSK-A63 spindle available as an option
• Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
• Solid box way construction, linear scales on all axes and twin ballscrew design in the X & Y axes
• High speed 4th axis rotary table, Integral Motor Driven 43,200deg/min (120rpm) rapids
• World's fastest rapid feed rates of 2,362ipm on induction hardened solid box ways
• Standard 2-station APC offers the ability to add pallets and pallet pool systems in the field
• Beats the competition in work envelope size and stroke!
• The ability to add 630mm tables in the field as an option
Features
• #40 Taper, 20,000rpm and #50 Taper, 12,000rpm geared spindle configurations. HSK-A63 spindle available as an option
• Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
• Solid box way construction, linear scales on all axes and twin ballscrew design in the X & Y axes
• High speed 4th axis rotary table, Integral Motor Driven 43,200deg/min (120rpm) rapids
• World's fastest rapid feed rates of 2,362ipm on induction hardened solid box ways
• Standard 2-station APC offers the ability to add pallets and pallet pool systems in the field
• Beats the competition in work envelope size and stroke!
• The ability to add 630mm tables in the field as an option
Imperial
| X | 34.3" |
| Y | 31.5" |
| Z | 36.6" |
| RPM | 20,000 RPM |
| # ATC | 50 |
| Taper | NST No. 40 |
| Pallet-W | 19.7" |
| Pallet-L | 19.7" |
| # Axis | 3 |
